Cylinder Marking & Painting

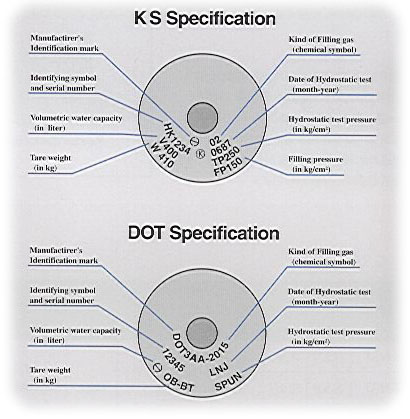

square43_blue.gif Marking (각인)

용기검사에 합격한 용기의 두부 또는 protector 부분 등 보기 쉬운 곳에 고압가스 안전관리법에 의거 규정하는 사항을 명확히 각인 하며 그 예는 다음과 같다.

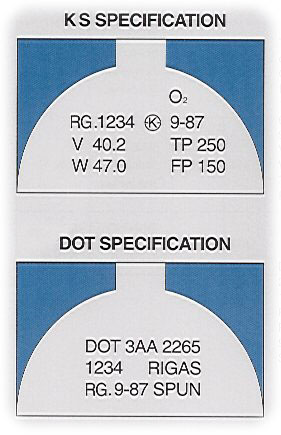

The following marks are stamped plainly and permantly on the shoulder of each cylinder


O2 : Name of Gas
RG : Manufacturer's Identification Mark
1234 : Serial Number
㉿ : Korean Standard Mark
9-87 : Date of Test (Sep. 1987)
V40.2 : Volumetric Water Capacity of Cylinder (liter)
W47.0 : Tare Weight of Cylinder w/o Valve & cap
TP 250 : Test Pressure of Cylinder (in kg/cm2)
FP 150 : Filling Pressure of Cylinder (in kg/cm2)





DOT3AA : Cylinder Specification
2265 : Service Pressure (in psi)
1234 : Serial Number
RIGAS : Inspectors, Official Mark
RG : Manufacturer's Identification Mark
9-87 : Date of Test (Sep. 1987)
SPUN : Manufacturing Method



square43_blue.gif Painting (도색)

용기는 충진가스의 종류 및 성질에 따라 다음과 같이 구별 도색하고 『연』자 및 『독』자는 적색(단 수소는 백색)으로 도색 한다.
혼합가스 용기의 도색에는 명확한 규정이 없다.



Specification of Cylinder Color

Gas

Color

Liquified Petroleum Gas

Dark Grey

Hydrogen

Orange

Acetylene

Yellow

Liquid Ammonia

White

Hydrogen Chloride

Brown

Liquid Carbon Dioxide

Blue

Oxygen

Green

Nitrogen & others

Dark Grey
